Module; GPS/BEIDOU/GALILEO/GLONASS; 40 channels; 1-10Hz; TTFF 1s/28s; -162dBm; 2.5m(CEP); 0.1m/s; 20ns PPS; D-GNSS; UART; NMEA/RTCM; 2-3.6V; external antenna; LCC 24-pin; 12.2x16x2.4mm

Product images are for illustrative purposes only. The actual appearance of the item may differ slightly from the image shown, which does not affect its essential properties.

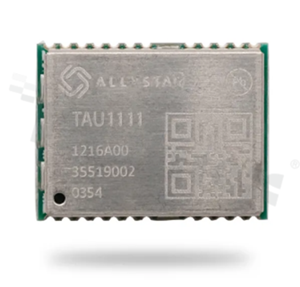

TAU1111-1216A00

Manufacturer code: TAU1111-1216A00

Module; GPS/BEIDOU/GALILEO/GLONASS; 40 channels; 1-10Hz; TTFF 1s/28s; -162dBm; 2.5m(CEP); 0.1m/s; 20ns PPS; D-GNSS; UART; NMEA/RTCM; 2-3.6V; external antenna; LCC 24-pin; 12.2x16x2.4mm

cad-link
Download files
TAU1111-1216A00.pdf
PDF - 1.16 MB
Download
Download files
TAU1111-1216A00.pdf
PDF - 1.16 MB
Download
Information
Manufacturer
ALLYSTAR
Product code
TAU1111-1216A00
Manufacturer product code
TAU1111-1216A00
Customs number
8526912099
Technical data
Minimum voltage
2.0V
Maximum voltage
3.6V
Antenna
external antenna
Standard
BEIDOUGALILEOGLONASSGPS
Bands
B1EL1 C/AL1OFL1 C/A
Refresh rate
1-10Hz
Interfaces
UART
Channels
40
Protocols
NMEARTCM
Multiplicity: 1 pcs.
Minimum purchase quantity: 1 pcs.
