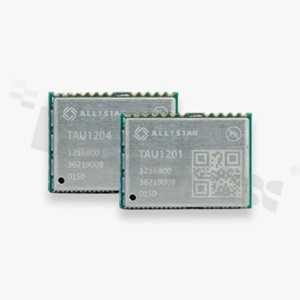

Module; GPS/BEIDOU/GALILEO/GLONASS; 40 channels; 1-10Hz; TTFF 1s/32s; -162dBm; <1m(CEP); 0.1m/s; 20ns PPS; QZSS, SBAS, D-GNSS, LNA; UART; NMEA/RTCM; 2-3.6V; external antenna; LCC 24-pin; 12.2x16x2.4mm

Product images are for illustrative purposes only. The actual appearance of the item may differ slightly from the image shown, which does not affect its essential properties.

TAU1201

Manufacturer code: TAU1201

Module; GPS/BEIDOU/GALILEO/GLONASS; 40 channels; 1-10Hz; TTFF 1s/32s; -162dBm; <1m(CEP); 0.1m/s; 20ns PPS; QZSS, SBAS, D-GNSS, LNA; UART; NMEA/RTCM; 2-3.6V; external antenna; LCC 24-pin; 12.2x16x2.4mm

cad-link
Download files
TAU1201.pdf
PDF - 319.60 kB
Download
Download files
TAU1201.pdf
PDF - 319.60 kB
Download
Information
Manufacturer
ALLYSTAR
Product code
TAU1201
Manufacturer product code
TAU1201
Customs number
8526912099
Technical data
Standard
BEIDOUGALILEOGLONASSGPS
Channels
40
Interfaces
UART
Refresh rate
1-10Hz
Protocols
NMEARTCM
Bands
B1B2aE1E5aL1L1 C/AL1OFL5CL1 C/A
Minimum voltage
2.0V
Maximum voltage
3.6V
Antenna
external antenna
