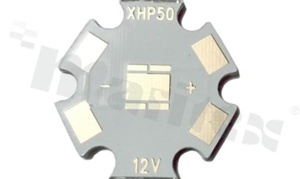

MCPCB, thermal conductivity 2W/(m*K), thickness: 1.6mm, number of layers - 1, copper layer thickness 35um, white soldermask, legend color: gold, size: 22mm star, pad cover: gold; for Cree XHP LEDs, /50

Product images are for illustrative purposes only. The actual appearance of the item may differ slightly from the image shown, which does not affect its essential properties.

DK150412_NX-1SX22S-XHP50 PCB-TECH - MCPCB for Cree LEDs

Manufacturer code: DK150412_NX-1SX22S-XHP50

MCPCB, thermal conductivity 2W/(m*K), thickness: 1.6mm, number of layers - 1, copper layer thickness 35um, white soldermask, legend color: gold, size: 22mm star, pad cover: gold; for Cree XHP LEDs, /50

cad-link
Quantity
[pcs] 		Net price
[PLN/pcs]
1+ 6.50
24+ 6.09
Download files
pdf-icon
MCPCB-XHP50-NC-1SW20.pdf
PDF - 70.70 kB
Download
The documentation is not updated automatically, however, we make every effort to ensure that the most up-to-date versions are published.
Download files
pdf-icon
MCPCB-XHP50-NC-1SW20.pdf
PDF - 70.70 kB
Download
The documentation is not updated automatically, however, we make every effort to ensure that the most up-to-date versions are published.
Information
Manufacturer
PCB-TECH
Product code
MCPCB-XHP50-NC-1SW20
Manufacturer product code
DK150412_NX-1SX22S-XHP50
Net weight
0.0014
Customs number
8534001900
Technical data
Lenght mm
22
Number of LEDs
1
Thickness
1.6 mm
Laminate type
MCPCB
Shape
star
Soldermask colour
white
Thermal conductivity
2W/(m*K)
Width mm
22
LED type
XHP
39
items in stock
Multiplicity: 1 pcs.
Minimum purchase quantity: 1 pcs.
Quantity
Total 6,5 PLN net
