ESP32-H2-MINI-1U-H2

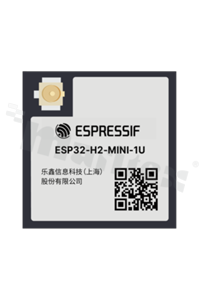

Module; Bluetooth/ZigBee/Thread; transceiver; 2MB FLASH/PSRAM/320KB SRAM/128KB ROM; 3.3-3.6V; 13.2x12.5x2.4mm

Product images are for illustrative purposes only. The actual appearance of the item may differ slightly from the image shown, which does not affect its essential properties.

ESP32-H2-MINI-1U-H2 - RF modules

Manufacturer code: ESP32-H2-MINI-1U-H2

Module; Bluetooth/ZigBee/Thread; transceiver; 2MB FLASH/PSRAM/320KB SRAM/128KB ROM; 3.3-3.6V; 13.2x12.5x2.4mm

Download files

ESP32-H2-MINI-1U-H2.pdf

PDF - 1.26 MB

Download

The documentation is not updated automatically, however, we make every effort to ensure that the most up-to-date versions are published.

Download files

ESP32-H2-MINI-1U-H2.pdf

PDF - 1.26 MB

Download

The documentation is not updated automatically, however, we make every effort to ensure that the most up-to-date versions are published.

Information

Manufacturer

ESPRESSIF

Product code

ESP32-H2-MINI-1U-H2

Manufacturer product code

ESP32-H2-MINI-1U-H2

Customs number

8517790000

Technical data

Type

transceiver

Technology

BluetoothThreadZigBee

SoC/SoM

SoM

Interfaces

GPIOI2CSPIUARTI2SLED PWMMotor PWMUSBJTAG

Minimum voltage

3.3 V

Maximum voltage

3.6 V

Minimum frequency

2402 MHz

Maximum frequency

2480 MHz

Rx sensitivity

-101.5 dBm

Antenna connector

IPEX

Tx transmitting power

20 dBm

FLASH memory

2 MB

Multiplicity: 1 pcs.

Minimum purchase quantity: 1 pcs.
