Module; GPS/BEIDOU/GALILEO/GLONASS; 33/99/210 channels; MT3333; 1-10Hz; TTFF 2s/32s; -149dBm; 2.5m(CEP); 0.1m/s; 100ns PPS; Geo-fence, jamming Detection, anti-jamming, Built-in LNA; I2C, UART; NMEA; 2.8-4.3V; external antenna; SMD; 10.1x9.7x2.5mm

Product images are for illustrative purposes only. The actual appearance of the item may differ slightly from the image shown, which does not affect its essential properties.

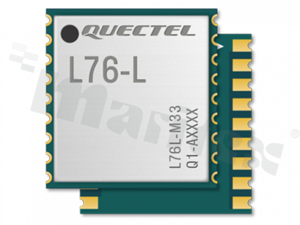

L76-L QUECTEL - GNSS modules

Manufacturer code: L76-L

Module; GPS/BEIDOU/GALILEO/GLONASS; 33/99/210 channels; MT3333; 1-10Hz; TTFF 2s/32s; -149dBm; 2.5m(CEP); 0.1m/s; 100ns PPS; Geo-fence, jamming Detection, anti-jamming, Built-in LNA; I2C, UART; NMEA; 2.8-4.3V; external antenna; SMD; 10.1x9.7x2.5mm

cad-link

Download files

The documentation is not updated automatically, however, we make every effort to ensure that the most up-to-date versions are published.

Download files

The documentation is not updated automatically, however, we make every effort to ensure that the most up-to-date versions are published.

Information

Manufacturer

Product code

L76-L

Manufacturer product code

L76-L

Customs number

8526912099

Technical data

Standard

BEIDOUGALILEOGLONASSGPS

Channels

33/99/210

Interfaces

I2CUART

Refresh rate

1 - 10 Hz

Protocols

NMEA

Chipset

MT3333

Minimum voltage

2.8 V

Bands

B1IL1E1L1 C/A

Maximum voltage

4.3 V

Antenna

external antenna
