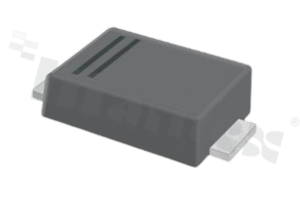

Fast Rectifying Diode; 200V; 1A; -55+150 deg.C; SMD; SMAF

Product images are for illustrative purposes only. The actual appearance of the item may differ slightly from the image shown, which does not affect its essential properties.

ES1D - Fast Rectifiers

Manufacturer code: ES1D

Fast Rectifying Diode; 200V; 1A; -55+150 deg.C; SMD; SMAF

Download files

ES1D-TD.pdf

PDF - 200.19 kB

Download

The documentation is not updated automatically, however, we make every effort to ensure that the most up-to-date versions are published.

Download files

ES1D-TD.pdf

PDF - 200.19 kB

Download

The documentation is not updated automatically, however, we make every effort to ensure that the most up-to-date versions are published.

Information

Manufacturer

TOPDIODE

Product code

ES1D-TD

Manufacturer product code

ES1D

Quantity per package

10000

Customs number

8541100000

Type of packaging

reel

Technical data

Forward current

1 A

Reverse voltage

200 V

Working Temperature

-55+150C

Recovery time

35 ns

Forward voltage

0.95 V

Mounting

SMD

Peak forward current

30 A

Case

SMAF

Multiplicity: 1 pcs.

Minimum purchase quantity: 1 pcs.

Type of packaging: reel

Quantity per package: 10000
