Gas

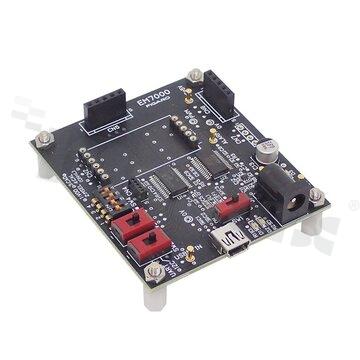

Test board for evaluation modules

Lid with air supply and exhaust openings

Evaluation module for FIGARO TGS8-series sensors; power supply: 5V DC; selectable load resistor (RL); voltage output; without sensor; NRND

Evaluation module for TGS1820; without sensor

Evaluation module for FIGARO TGS26-series sensors; power supply: 5V DC; selectable load resistor (RL); voltage output; without sensor

Evaluation module for FIGARO TGS26-series air quality sensors; power supply: 5V DC; sensor selection via dip-switch; voltage output; without sensor

Evaluation module for TGS3870; without sensor

Evaluation module for TGS5042; sensor not included

Evaluation module for TGS5141; sensor not included

Communication interface for transferring output signals from Figaro sensor evaluation modules to an external PC

Evaluation module for CDM7162 sensor; sensor not included

Evaluation module for FECS series sensors; sensor not included

Evaluation module for FECS series sensors; sensor not included

MOS-type refrigerant gas R32 sensor; range: alarm set point 5000ppm; supply: 5V; power: 300 mW

MOS-type refrigerant gas R32 sensor; range: alarm 5000ppm; supply: 5V; power: 300 mW

MOS-type refrigerant gas R32 sensor; range: alarm 6048ppm; supply: 5V; power: 300 mW, open collector output

MOS-type refrigerant gas R32 sensor; range: alarm 5000ppm; supply: 5V; power: 300 mW, NPN Open collector output

MOS-type refrigerant gas R454B sensor; range: alarm 4830ppm; supply: 5V; power: 300 mW, RS485 output

Electrochemical type Carbon monoxide gas sensor; range: 0-1000ppm; power: 0mW

Electrochemical type nitric oxide gas sensor; range: 0-300ppm; power: 0mW

Electrochemical type nitrogen dioxide gas sensor; range: 0-30ppm; power: 0mW

Electrochemical type sulfur dioxide gas sensor; range: 0-20ppm; power: 0mW

Electrochemical type ammonia gas sensor; range: 0-100ppm; power: 0mW

Electrochemical type ammonia gas sensor; range: 0-1000ppm; power: 0mW

Electrochemical type ammonia gas sensor; range: 0-200ppm; power: 0mW

Electrochemical type ammonia gas sensor; range: 0-5000ppm; power: 0mW

Electrochemical type chlorine oxide gas sensor; range: 0-10ppm; power: 0mW

Electrochemical type hydrogen sulfide gas sensor; range: 0-100ppm; power: 0mW

Electrochemical type oxygen gas sensor; lead-free; range: 0-30% O2; response time: 8s; power: 0mW; thread M16x1

Electrochemical type oxygen gas sensor; range: 0-100% O2; power: 0mW; end of production: 10.09.2024

Electrochemical type oxygen gas sensor; range: 0-100% O2; power: 0mW; thread M16x1; end of production: 10.09.2024

Electrochemical type oxygen gas sensor; lead-free; range: 0-30% O2; response time: 15s; power: 0mW; thread M16x1

Electrochemical type oxygen gas sensor; lead-free; range: 0-100% O2; response time: 15s; power: 0mW; thread M16x1

Electrochemical type oxygen gas sensor; range: 0-100% O2; power: 0mW; oring; end of production: 10.09.2024

Electrochemical type oxygen gas sensor; lead-free; range: 0-30% O2; response time: 15s; power: 0mW

Electrochemical type oxygen gas sensor; range: 0-100% O2; power: 0mW; end of production: 10.09.2024

Electrochemical type oxygen gas sensor; lead-free; long life; range: 0-30% O2; response time: 60s; power: 0mW

MOS-type butane, propane gas sensor; range: alarm set point 1250ppm; supply: 5V; power: 280 mW

MOS-Type methane gas sensor; range: alamr at 5000ppm; supply: 5V; power: 280 mW

Evaluation module with air quality sensor TGS2600; pre-calibrated; range: 0-500 (index); power supply: 3.3V; temperature and humidity compensation; output: I2C, Pmod Type6A, analog; compatible with Renesas Quick-connect IoT system

Evaluation module with air quality sensor TGS2602; pre-calibrated; range: 0-500 (index); power supply: 3.3V; temperature and humidity compensation; output: I2C, Pmod Type6A, analog; compatible with Renesas Quick-connect IoT system

Evaluation module with air quality sensor TGS2603; pre-calibrated; range: 0-500 (index); power supply: 3.3V; temperature and humidity compensation; output: I2C, Pmod Type6A, analog; compatible with Renesas Quick-connect IoT system

Evaluation module with nitric dioxide sensor FECS42-20; pre-calibrated; range: 0-300ppm; power supply: 3.3V; temperature and humidity compensation; output: I2C, Pmod Type6A, analog; compatible with Renesas Quick-connect IoT system

Evaluation module with sulphur dioxide sensor FECS43-20; pre-calibrated; range: 0-30ppm; power supply: 3.3V; temperature and humidity compensation; output: I2C, Pmod Type6A, analog; compatible with Renesas Quick-connect IoT system

Evaluation module with ammonia sensor FECS44-100; pre-calibrated; range: 0-150ppm; power supply: 3.3V; temperature and humidity compensation; output: I2C, Pmod Type6A, analog; compatible with Renesas Quick-connect IoT system

Evaluation module with ammonia sensor FECS44-1000; pre-calibrated; range: 0-1500ppm; power supply: 3.3V; temperature and humidity compensation; output: I2C, Pmod Type6A, analog; compatible with Renesas Quick-connect IoT system

Evaluation module with hydrogen sulphide sensor FECS50-100; pre-calibrated; range: 0-150ppm; power supply: 3.3V; temperature and humidity compensation; output: I2C, Pmod Type6A, analog; compatible with Renesas Quick-connect IoT system

Evaluation module with carbon monoxide sensor TGS5141; pre-calibrated; range: 0-150ppm; power supply: 3.3V; temperature and humidity compensation; output: I2C, Pmod Type6A, analog; compatible with Renesas Quick-connect IoT system

Evaluation module with methane and hydrogen sensor TGS6810; pre-calibrated; range: 0-10000ppm; power supply: 3.3V; temperature and humidity compensation; output: I2C, Pmod Type6A, analog; compatible with Renesas Quick-connect IoT system

Evaluation module with carbon dioxide sensor CDM7162; pre-calibrated; range: 0-5000ppm; power supply: 3.3V; temperature and humidity compensation; output: I2C, Pmod Type6A, analog; compatible with Renesas Quick-connect IoT system
