New Wolfspeed Module Family in Single Switch Topology – TM Series

These are advanced automotive power modules designed for modern inverter systems. They are based on silicon carbide (SiC) technology and built in a single‑switch topology, providing exceptional efficiency, high reliability, and design flexibility.

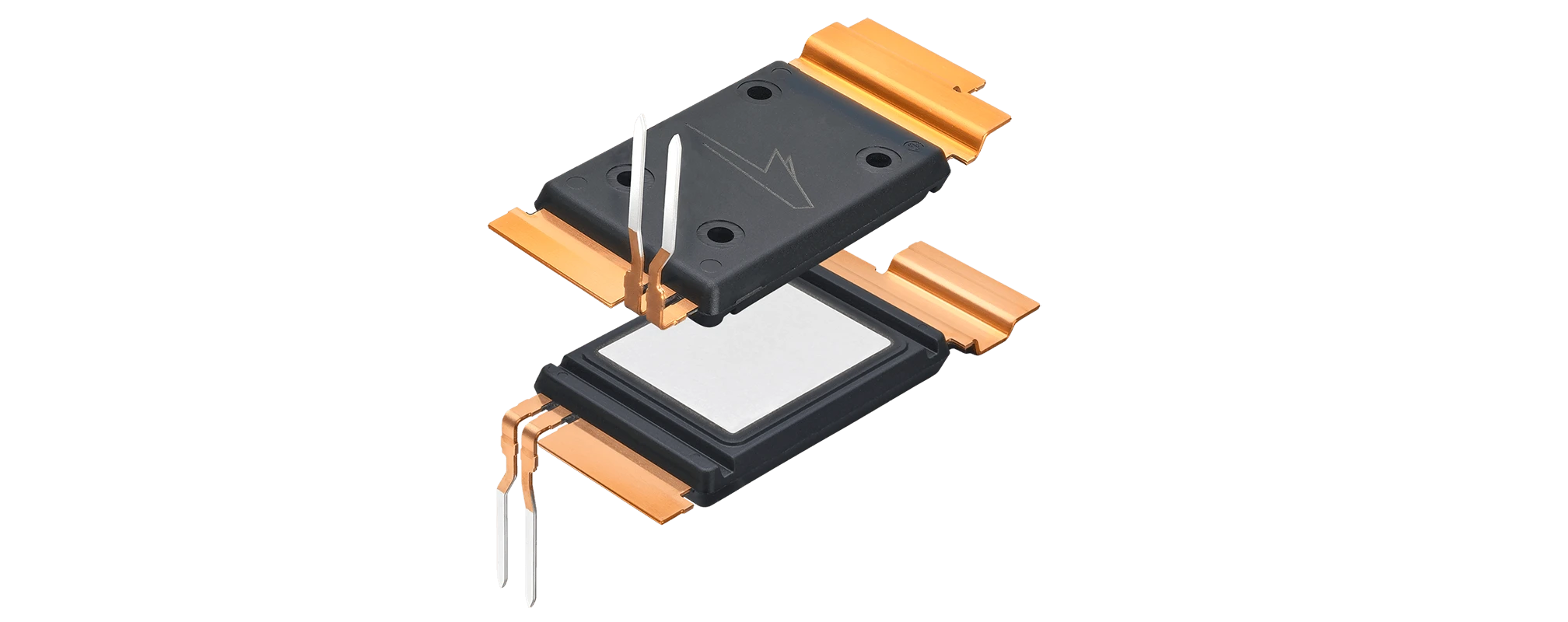

The TM module family uses the latest Wolfspeed SiC MOSFET transistors, offering a compact baseplate‑less design, low parasitic inductance, and high thermal robustness.
All of this makes the TM series an ideal fit for e‑mobility, industrial drives, and electric aviation, setting a new standard in power conversion by combining high performance with durability and ease of integration.

Electrical and Thermal Parameters:

• Voltage classes: 650 V (Gen 3 MOSFET) and 1200 V (Gen 4 MOSFET);
• Rated currents: up to 440 A (650 V) and 320 A (1200 V);
• High‑temperature capability: junction temperature up to 200 °C for 100 h over the product lifetime; operation compliant with automotive load profiles;
• Low switching losses thanks to advanced MOSFET structure and optimized module layout;
• Creepage distance > 6.3 mm and CTI > 600, ensuring high insulation robustness.

Mechanical Design and Features:

• Compact baseplate‑less construction with Si₃N₄ insulation, providing:

- high thermal conductivity

- strong resistance to thermal cycling

• Sinterable and solderable silver‑plated bottom surface for maximum reliability, thermal performance, and compatibility with standard assembly lines;
• Laser‑welded power terminals enabling automated connections;
• Two signal‑pin lengths: 18.5 mm and 19 mm, simplifying PCB and harness integration.

System‑Level Benefits:

• Reduced parasitic inductance enabling fast and stable switching;
• High reliability confirmed by AQG 324 qualification;
• Scalable module concept for multiphase traction inverters;
• Optimized for high‑frequency operation, allowing reduction of passive components and increased power density.

Target Applications:

• Traction inverters for electric vehicles (BEV/HEV);;
• High‑performance motor drives;
• Electric aviation and eVTOL platforms;
• DC‑bus‑powered power‑conversion systems requiring high efficiency and thermal robustness.

Please feel free to call us and submit your orders: +4858 662 05 28, [email protected].
